Grain Spreader

Home »   Grain Spreader

Designed for bins up to 60' diameter

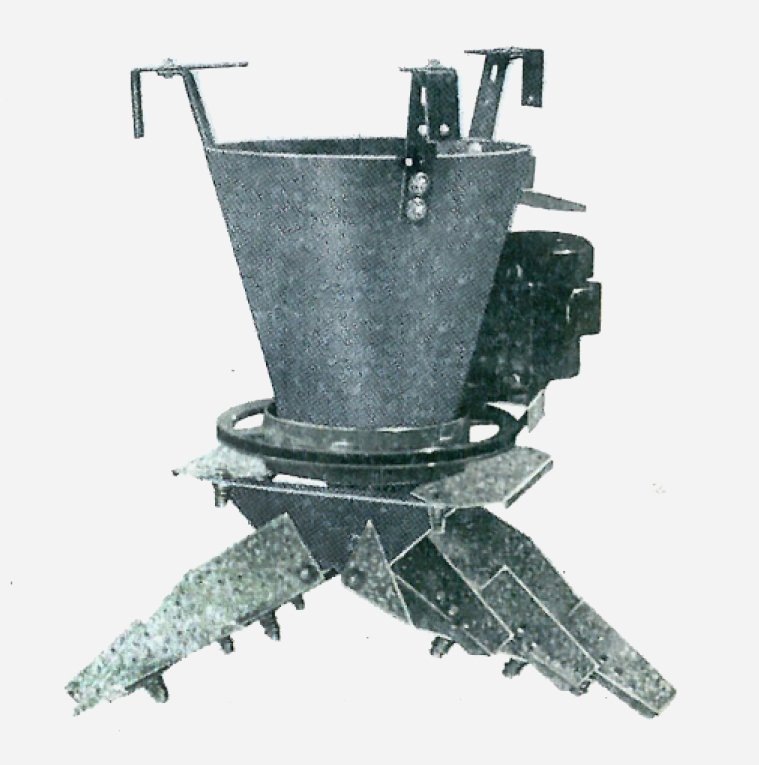

The Bali Group grain spreader will spread up to *5400 bushels per hour. Permanently lubricated bearings designed after the proven models. Fits hatches 24" to 48" in diameter. Optional extension brackets will allow up to 60" diameter hatches.

Quality built to give years of dependable service. Flow control gates give even distribution of grain and fines.

The Bali Group grain spreader has the capability of giving the best spreading action possible by using the spring loaded pans & gates.

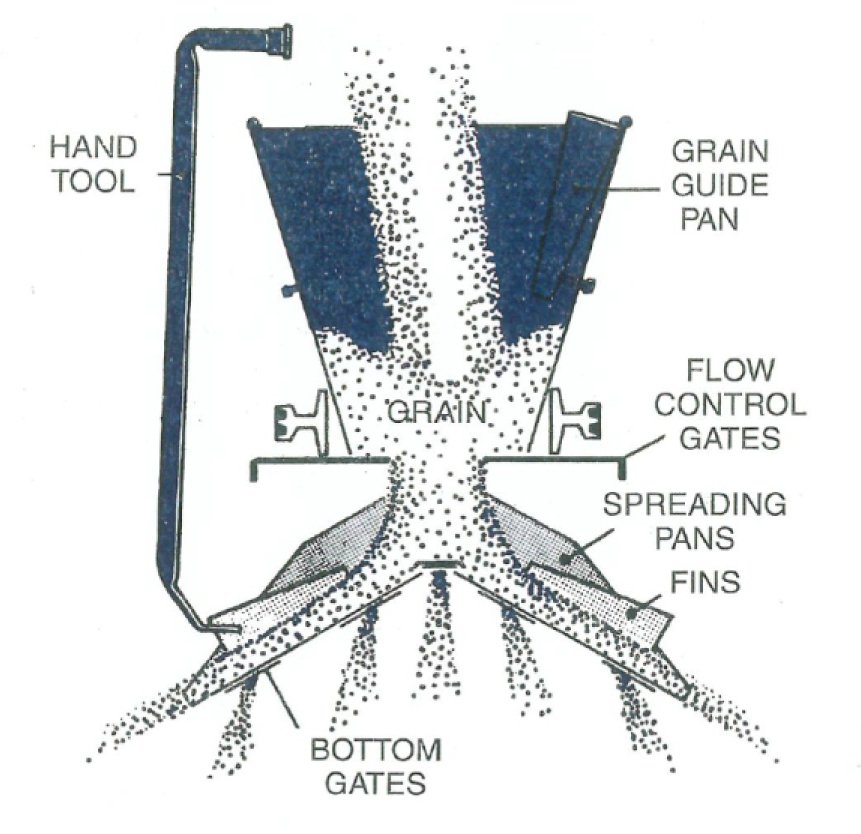

If the incoming grain is not centered the grain guide pan can be adjusted to direct the grain toward the center of the spreader. Flow control gates will allow the grain to drop onto the pans in an even and steady manner. The spring loaded adjustable fins direct the grain to different areas of the bin and the bottom gates will drop grain in the bin center.

Compared to competitive spreaders, that leave grain uneven from side to side, the sp4 gates and pan allow the operator to adjust for the best possible distribution of grain.
